Configuring SSL

SSL encryption is natively supported in our images. With FrankenPHP, a trusted certificate can automatically be generated by Let's Encrypt. You can also bring your own certificates or have a self-signed certificate generated for you.

Supported Variations

SSL is natively supported in the following variations:

SSL Modes

You can control SSL behavior with the SSL_MODE environment variable:

Choose How to Run SSL in Production

You have a few options for running SSL in production:

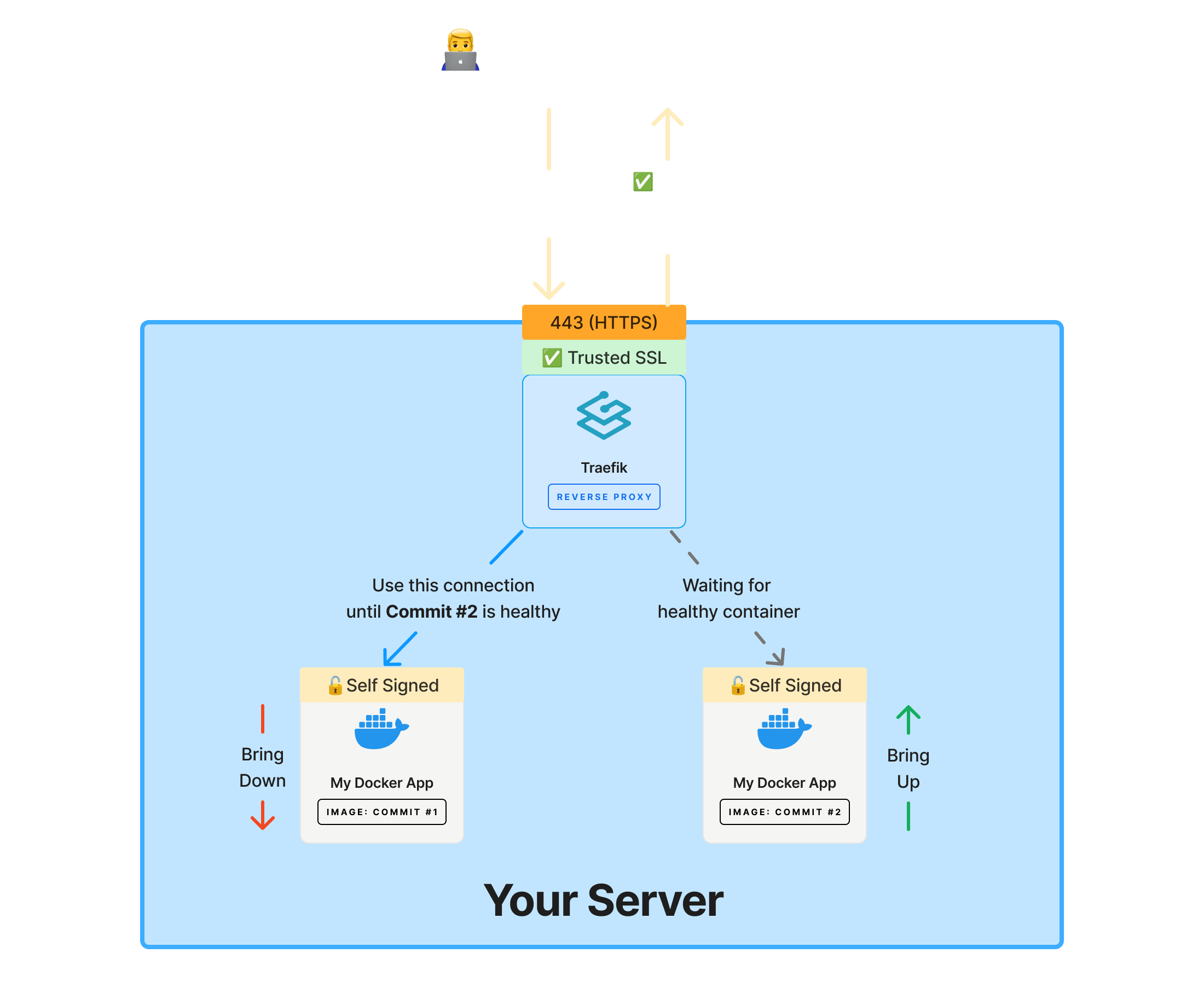

Reverse Proxy (recommended)

Our recommended approach is to use a reverse proxy like Traefik or Caddy that listens on ports 80 (HTTP) and 443 (HTTPS). The reverse proxy will forward traffic to your container on the non-privileged ports of 8080 (HTTP) or 8443 (HTTPS).

Using a reverse proxy unlocks two major benefits:

1. Automatic SSL certificate management (via Let's Encrypt)
2. Zero-downtime deployments

When you're running updates on containers, the reverse proxy stays online while updates are deployed to your containers in the background. Configuring a reverse proxy is outside the scope of this documentation, but you can reference the links below to learn more:

• Traefik
• Caddy

Use a Reverse Proxy When You Want...

• Zero-downtime deployments
• Automatic SSL certificate management (via Let's Encrypt)
• Load balancing

If you want a simple way to run your own reverse proxy with zero-downtime deployments, consider using Spin.

FrankenPHP's Built-in Automatic HTTPS

FrankenPHP provides automated HTTPS through Caddy. To directly expose FrankenPHP to the internet, you'll need to configure the following:

1. Environment variables (for Caddy configuration)
2. Ports (for direct exposure of ports 80 and 443)
3. Volumes (for certificate files)

Environment Variables

Configure the following environment variables:

Ports

Configure the following ports:

Volumes

Configure the following volumes:

Example

Here's an example of directly exposing FrankenPHP to the internet with automatic HTTPS via Let's Encrypt:

services:
  php:
    image: serversideup/php:8.4-frankenphp
    ports:
      - 80:8080
      - 443:8443
    environment:
      CADDY_AUTO_HTTPS: "on"
      CADDY_HTTPS_SERVER_ADDRESS: "https://example.com"
      SSL_MODE: "full"
    # Mount the current directory to /var/www/html
    volumes:
      - .:/var/www/html
      - config:/config
      - data:/data

  volumes:
    config:
    data:

Use FrankenPHP's Built-in Automatic HTTPS When You Want...

• To run your application and handle SSL termination all in one container
• A simple setup without needing zero-downtime deployments

Bringing Your Own Certificate

If automatic HTTPS isn't an option, you can provide your own certificate from a vendor like ssls.com. Ensure your certificate issuer provides certificates compatible with your web server in PEM format.

To add your own certificate, mount the certificate files to the container:

services:
  php:
    image: serversideup/php:8.4-fpm-nginx
    ports:
      - 80:8080
      - 443:8443
    environment:
      SSL_MODE: "mixed"
      SSL_PRIVATE_KEY_FILE: "/etc/ssl/custom/test-key.pem"
      SSL_CERTIFICATE_FILE: "/etc/ssl/custom/test.pem"
    volumes:
      - .:/var/www/html/
      - ./certs/:/etc/ssl/custom/

Use Your Own Certificates When You...

• Cannot use Let's Encrypt (corporate policy, network restrictions, etc.)
• Have a specific certificate vendor requirement
• Don't need zero-downtime deployments

Self-Signed Certificate

While browsers will show warnings, self-signed certificates are useful for specific use cases, such as encrypting traffic between containers in a cluster. If you set SSL_MODE to mixed or full without providing a certificate at $SSL_CERTIFICATE_FILE and $SSL_PRIVATE_KEY_FILE, a self-signed certificate will be automatically generated.

services:
  php:
    image: serversideup/php:8.4-fpm-nginx
    ports:
      - 80:8080
      - 443:8443
    environment:
      # Set SSL mode to "mixed" (HTTP + HTTPS)
      SSL_MODE: "mixed"
    volumes:
      - .:/var/www/html

The above will generate a self-signed certificate and configure the server to listen on both HTTP (port 80) and HTTPS (port 443).

Use a Self-Signed Certificate When You...

• Have a reverse proxy in front of the container handling SSL termination
• Need all traffic to be encrypted (even on the internal network between containers)
